RK3588鸿蒙OpenHamoneyos4.0开发板麒麟国产 Case Study

支持Android、Ubuntu、鸿蒙等多种操作系统，灵活应用场景

产品概述

IDO-EVB3588-V1是一款采用瑞芯微全新旗舰SOC芯片RK3588设计的评估主板。RK3588是一款采用ARM架构的通用型SoC，集成了四核Cortex-A76和四核Cortex-A55 CPU，G610 MP4 GPU，以及6 TOPs算力的NPU。内置多种功能强大的嵌入式硬件引擎，支持8K@60fps的H.265 和VP9解码器、8K@30fps的H.264 解码器和4K@60fps的AV1解码器；支持8K@30fps 的H.264和H.265编码器，高质量的JPEG编码器/解码器，专门的图像预处理器和后处理器。

IDO-EVB3588-V1具有丰富的视频输入输出接口（HDMI-TX/HDMI-RX/eDP1.3/MIPI-DSI/MIPI-CSI) ，高速通信接口（Enthernet/Pcie3.0/USB3.0/TF卡)，工业互联接口（RS485/RS232/UART），可作为RK3588开发评估板，也普遍适用于各种智慧显示终端产品、视频类终端产品、工业自动化终端产品和边缘计算网关类产品。应用可覆盖边缘计算、人工智能、工业HMI、工业网关、智慧医疗、自助终端、智能零售、能源电力等行业。

产品特点

搭载RK3588高性能SOC，集成了四核Cortex-A76和四核Cortex-A55 CPU，主频高达2.4G；
6TOPS AI算力，三核架构，支持int4/int8/int16/FP16/BF16/TF32；
支持H.265/H.264/AV1/VP9/AVS2视频解码，高达8K60FPS；
支持 H.264/H.265视频编码，高达8K30FPS；
支持HDMI2.1输出，高达8K@60Hz；
支持HDMI2.0 输入，高达4K60FPS；
支持多摄像头输入；
双通道LVDS，支持到1080P@60Hz 大屏幕；
多屏异显；
两路**的千兆以太网口，支持WAN口+LAN口双IP ；
5G/4G/WIFI/蓝牙无线通信；
板载4路USB3.0，2路全功能Type-C；
丰富的系统支持， Android 12，Ubuntu，鸿蒙OpenHamoney全*面支持。

产品外观及尺寸

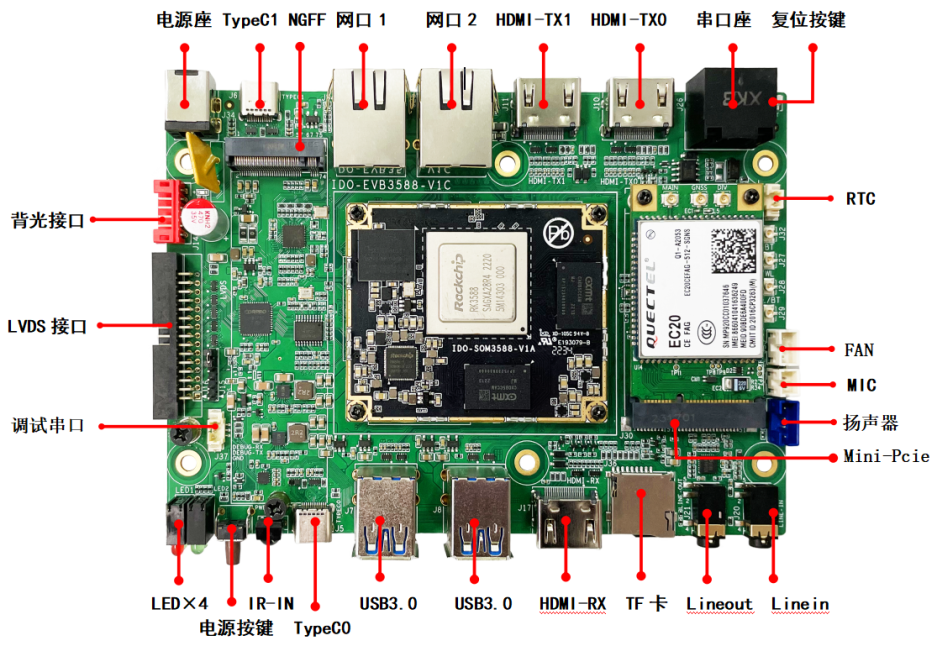

图2. IDO-EVB3588-V1正面接口图

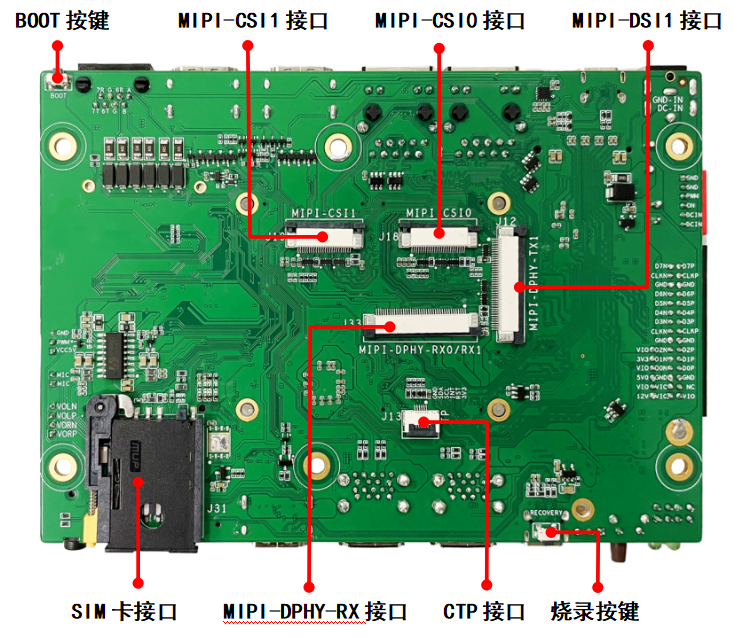

图3. IDO-EVB3588-V1背面接口图

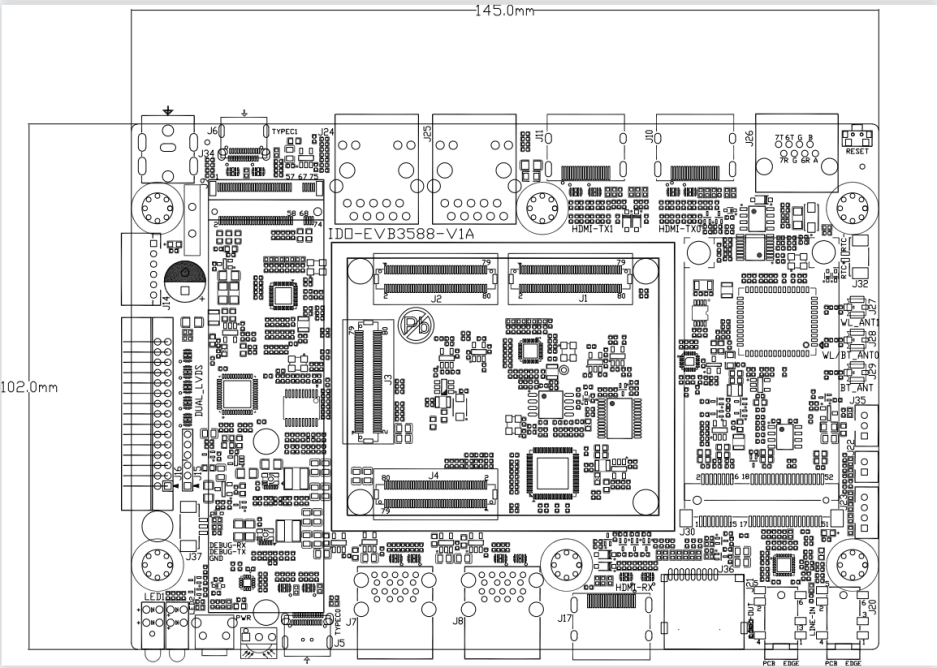

图4. IDO-EVB3588-V1尺寸图

硬件参数

基本参数
SOC系统芯片	RockChip RK3588
CPU处理器**	Quad-core Cortex-A76 and quad-core Cortex-A55，主频高达2.4GHz
GPU图形处理器	Mali-G610 GPU 支持OpenGL ES 3.2，OpenCL 2.2，Vulkan 1.1 内嵌高性能2D、3D加速硬件
NPU嵌入式神经网络处理器	支持6.0T算力，支持INT4/INT8/INT16/FP16运算
VPU视频处理单元	视频解码 H.265/AVS2/VP9, 8bits/10bits， 8K@60fps H.264/AV1, 8bits/10bits， 8K@30fps Multi-channel decoder in parallel for less resolution (4K/1080p/720p etc.) 视频编码 H.265/H.264, 8K@30fps Multi-channel encoder in parallel for less resolution (1080p/720p etc.) Muti-format 视频解码 H.265/H.264, 8K@30fps 1080P@60fps video decoder for VP8/AVS1/AVS1+/MPEG-4
内存	4GB / 8GB / 16GB LPDDR4/4x
存储	32GB / 64GB / 128GB eMMC 1 × PCIE3.0 （M.2接口NVME固态硬盘） 1 × TF-Card Slot x1（可支持TF 卡扩展）
硬件参数
以太网络	支持双千兆以太网（1000 M bps）
无线网络	Mini PCIe 扩展 4G/5G LTE 支持双频2.4G/5.8G Wifi 支持BT4.2及以上
显示	视频输出： 1 x HDMI2.1接口，支持（8K/60fps或4K/120fps）输出 1 x HDMI2.0接口，支持4K/60fps输出 1 x MIPI DSI接口，支持4k@60fps输出 2 x eDP接口，支持4K@60fps输出 2 x DP接口，支持8k@30fp输出 1 x Dual LVDS接口，支持1920x1080p@60fps输出视频输入： 1 x HDMI-IN，支持（4K/60fps，HDCP2.3） 2 x MIPI CSI（4Lane） 2 x MIPI DC（4通道DPHY v2.0或者3通道CPHY v1.1） *多可支持7屏异显输出
音频接口	2 × HDMI 音频输出 1 × Speaker，左右双声道喇叭输出（4Ω3W） 1 × Line-out（3.5mm耳机接口） 1 × Line-in（3.5mm耳机接口） 1 × Mic
USB	4 × USB3.0 2 × TypeC（全功能,DP）
扩展接口	1 × Debug（UART2） 1 × UART 1 × RS232 1 × RS485 1 × PWM 1 × TP 座（I2C）
其他
主板尺寸	14.5cm X 10.2cm

工作环境

工作环境
工作温度	0℃～70℃
工作湿度	0~项目要求范围内 RH 非冷凝
存储温度	-40℃～85℃

系统支持

序号	操作系统	支持	说明
1	Android12
2	Debian10
3	Ubuntu20
4	Buildroot
5	麒麟OS
6	鸿蒙OpenHamoney
